R77DM100L4詳細信息

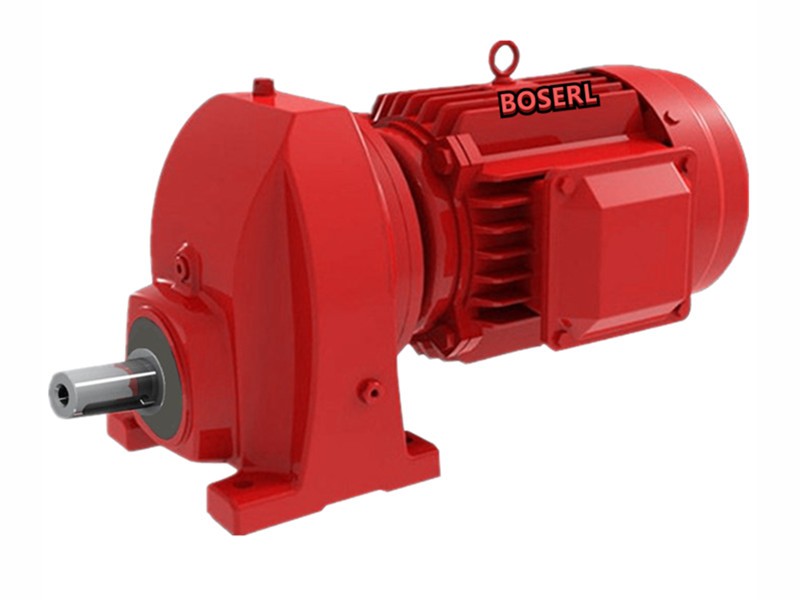

R77DM100L4
訂購熱線：13360667204
關鍵詞：2.2千瓦電機減速機_R77DM100L4_R77DM100LC4
R77DM100L4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R77DM100L4 | 45.81 | 3KW | 32rpm | 900N.m | 71kg | 9090N | 0.90 |
| R77DM100L4 | 43.26 | 3KW | 34rpm | 850N.m | 71kg | 9620N | 0.95 |
| R77DM100L4 | 36.83 | 3KW | 40rpm | 725N.m | 71kg | 10700N | 1.15 |
| R77DM100L4 | 33.47 | 3KW | 43rpm | 655N.m | 71kg | 11200N | 1.25 |
| R77DM100L4 | 29.00 | 3KW | 50rpm | 570N.m | 71kg | 11600N | 1.45 |
| R77DM100L4 | 25.23 | 3KW | 58rpm | 495N.m | 71kg | 11200N | 1.55 |
| R77DM100L4 | 23.37 | 3KW | 62rpm | 460N.m | 71kg | 11000N | 1.80 |
| R77DM100L4 | 21.43 | 3KW | 68rpm | 420N.m | 71kg | 10700N | 1.95 |
| R77DM100L4 | 18.80 | 3KW | 77rpm | 370N.m | 71kg | 10400N | 2.10 |
| R77DM100L4 | 17.82 | 3KW | 82rpm | 350N.m | 71kg | 10200N | 2.20 |
| R77DM100L4 | 15.60 | 3KW | 93rpm | 305N.m | 71kg | 9880N | 2.40 |
| R77DM100L4 | 14.05 | 3KW | 104rpm | 275N.m | 71kg | 9600N | 2.60 |
| R77DM100L4 | 12.33 | 3KW | 118rpm | 240N.m | 71kg | 9250N | 2.80 |
| R77DM100L4 | 10.88 | 3KW | 134rpm | 210N.m | 71kg | 8930N | 3.10 |
| R77DM100L4 | 9.64 | 3KW | 151rpm | 190N.m | 71kg | 8630N | 3.30 |
| R77DM100L4 | 8.59 | 3KW | 169rpm | 169N.m | 71kg | 8400N | 3.70 |
| R77DM100L4 | 7.74 | 3KW | 188rpm | 152N.m | 71kg | 8150N | 4.00 |
| R77DM100L4 | 6.79 | 3KW | 214rpm | 134N.m | 71kg | 7830N | 4.30 |
R77DM100LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R77DM100LC4 | 36.83 | 4KW | 40rpm | 960N.m | 82kg | 7040N | 0.85 |
| R77DM100LC4 | 33.47 | 4KW | 44rpm | 870N.m | 82kg | 9370N | 0.95 |
| R77DM100LC4 | 29.00 | 4KW | 50rpm | 755N.m | 82kg | 10500N | 1.1 |
| R77DM100LC4 | 25.23 | 4KW | 58rpm | 660N.m | 82kg | 10700N | 1.2 |
| R77DM100LC4 | 23.37 | 4KW | 62rpm | 610N.m | 82kg | 10500N | 1.35 |
| R77DM100LC4 | 21.43 | 4KW | 68rpm | 560N.m | 82kg | 10300N | 1.45 |
| R77DM100LC4 | 18.80 | 4KW | 78rpm | 490N.m | 82kg | 10000N | 1.6 |
| R77DM100LC4 | 17.82 | 4KW | 82rpm | 465N.m | 82kg | 9880N | 1.65 |
| R77DM100LC4 | 15.60 | 4KW | 94rpm | 405N.m | 82kg | 9560N | 1.80 |
| R77DM100LC4 | 14.05 | 4KW | 104rpm | 365N.m | 82kg | 9320N | 1.95 |
| R77DM100LC4 | 12.33 | 4KW | 118rpm | 320N.m | 82kg | 9010N | 2.10 |
| R77DM100LC4 | 10.88 | 4KW | 134rpm | 280N.m | 82kg | 8710N | 2.30 |
| R77DM100LC4 | 9.64 | 4KW | 151rpm | 250N.m | 82kg | 8430N | 2.50 |
| R77DM100LC4 | 8.59 | 4KW | 170rpm | 220N.m | 82kg | 8250N | 2.80 |
| R77DM100LC4 | 7.74 | 4KW | 189rpm | 200N.m | 82kg | 8010N | 3.00 |
| R77DM100LC4 | 6.79 | 4KW | 215rpm | 178N.m | 82kg | 7710N | 3.30 |
| R77DM100LC4 | 5.99 | 4KW | 244rpm | 157N.m | 82kg | 7430N | 3.40 |
| R77DM100LC4 | 5.31 | 4KW | 275rpm | 139N.m | 82kg | 7160N | 3.70 |
R77DM100L4減速器電動機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機
R77DM100L4減速器電動機安裝尺寸圖紙
R77DM100L4減速器電動機生產工廠展示：看廠請?zhí)崆叭祛A約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 2.2千瓦電機減速機 R77DM100L4 R77DM100LC4
