RF107RF77-Y0.18KW詳細信息
RF107RF77-Y0.18KW
訂購熱線：13360667204
關鍵詞：1.1KW電機能配多大立式齒輪減速箱_RF107RF77-Y0.18KW_RF107RF77-Y0.25KW_RF107RF77-Y0.37KW
RF107RF77-Y0.18KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF107RF77-Y0.18KW | 4435 | 0.18KW | 0.30r/min | 4490N.m | 195kg | 28400N | 0.95 |
| RF107RF77-Y0.18KW | 3896 | 0.18KW | 0.34r/min | 3980N.m | 195kg | 31100N | 1.10 |
| RF107RF77-Y0.18KW | 3039 | 0.18KW | 0.43r/min | 3220N.m | 195kg | 34200N | 1.35 |
| RF107RF77-Y0.18KW | 3918 | 0.18KW | 0.34r/min | 4210N.m | 195kg | 29900N | 1.00 |
| RF107RF77-Y0.18KW | 3343 | 0.18KW | 0.39r/min | 3590N.m | 195kg | 32800N | 1.20 |
| RF107RF77-Y0.18KW | 3034 | 0.18KW | 0.44r/min | 3260N.m | 195kg | 34100N | 1.30 |
| RF107RF77-Y0.18KW | 2653 | 0.18KW | 0.50r/min | 2850N.m | 195kg | 35400N | 1.50 |
| RF107RF77-Y0.18KW | 2280 | 0.18KW | 0.58r/min | 2450N.m | 195kg | 36200N | 1.75 |
| RF107RF77-Y0.18KW | 2067 | 0.18KW | 0.64r/min | 2210N.m | 195kg | 36500N | 1.95 |
| RF107RF77-Y0.18KW | 1987 | 0.18KW | 0.66r/min | 2100N.m | 195kg | 36700N | 2.00 |
| RF107RF77-Y0.18KW | 1827 | 0.18KW | 0.72r/min | 1870N.m | 195kg | 36900N | 2.30 |
| RF107RF77-Y0.18KW | 1599 | 0.18KW | 0.83r/min | 1590N.m | 195kg | 37200N | 2.70 |
| RF107RF77-Y0.18KW | 1400 | 0.18KW | 0.94r/min | 1430N.m | 195kg | 37300N | 3.00 |
| RF107RF77-Y0.18KW | 1226 | 0.18KW | 1.10r/min | 1220N.m | 195kg | 37400N | 3.50 |
RF107RF77-Y0.25KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF107RF77-Y0.25KW | 3039 | 0.25KW | 0.43r/min | 4730N.m | 199kg | 25600N | 0.90 |
| RF107RF77-Y0.25KW | 3034 | 0.25KW | 0.43r/min | 4780N.m | 199kg | 23600N | 0.90 |
| RF107RF77-Y0.25KW | 1987 | 0.25KW | 0.65r/min | 3100N.m | 199kg | 34600N | 1.40 |
| RF107RF77-Y0.25KW | 1827 | 0.25KW | 0.71r/min | 2790N.m | 199kg | 35600N | 1.55 |
| RF107RF77-Y0.25KW | 1599 | 0.25KW | 0.81r/min | 2400N.m | 199kg | 36300N | 1.80 |
| RF107RF77-Y0.25KW | 1400 | 0.25KW | 0.93r/min | 2140N.m | 199kg | 36600N | 2.00 |
| RF107RF77-Y0.25KW | 1226 | 0.25KW | 1.10r/min | 1840N.m | 199kg | 36900N | 2.30 |
| RF107RF77-Y0.25KW | 939 | 0.25KW | 1.40r/min | 1430N.m | 199kg | 37300N | 3.00 |
| RF107RF77-Y0.25KW | 822 | 0.25KW | 1.60r/min | 1230N.m | 199kg | 37400N | 3.50 |
RF107RF77-Y0.37KW減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF107RF77-Y0.37KW | 2067 | 0.37KW | 0.67r/min | 4660N.m | 199.5kg | 27300N | 0.90 |
| RF107RF77-Y0.37KW | 1693 | 0.37KW | 0.82r/min | 3790N.m | 199.5kg | 31900N | 1.15 |
| RF107RF77-Y0.37KW | 1550 | 0.37KW | 0.89r/min | 3420N.m | 199.5kg | 33500N | 1.25 |
| RF107RF77-Y0.37KW | 1407 | 0.37KW | 0.98r/min | 3100N.m | 199.5kg | 34600N | 1.40 |
| RF107RF77-Y0.37KW | 1209 | 0.37KW | 1.10r/min | 2660N.m | 199.5kg | 35900N | 1.60 |
| RF107RF77-Y0.37KW | 1055 | 0.37KW | 1.30r/min | 2330N.m | 199.5kg | 36400N | 1.85 |
| RF107RF77-Y0.37KW | 1987 | 0.37KW | 0.69r/min | 4450N.m | 199.5kg | 28600N | 0.95 |
| RF107RF77-Y0.37KW | 1827 | 0.37KW | 0.76r/min | 4030N.m | 199.5kg | 30800N | 1.05 |
| RF107RF77-Y0.37KW | 1599 | 0.37KW | 0.86r/min | 3490N.m | 199.5kg | 33200N | 1.25 |
| RF107RF77-Y0.37KW | 1400 | 0.37KW | 0.99r/min | 3090N.m | 199.5kg | 34600N | 1.40 |
| RF107RF77-Y0.37KW | 1226 | 0.37KW | 1.10r/min | 2670N.m | 199.5kg | 35900N | 1.60 |
| RF107RF77-Y0.37KW | 939 | 0.37KW | 1.50r/min | 2070N.m | 199.5kg | 36700N | 2.10 |
| RF107RF77-Y0.37KW | 822 | 0.37KW | 1.70r/min | 1790N.m | 199.5kg | 37000N | 2.40 |
RF107RF77-Y0.18KW減速機類型：
RX107RF77-Y0.18KW單級底腳安裝斜齒輪減速電機
RXF107RF77-Y0.18KW單級B5法蘭安裝斜齒輪減速機電機
R107RF77-Y0.18KW底腳安裝斜齒輪減速電機
R107FRF77-Y0.18KW底腳、B5法蘭安裝斜齒輪減速電機
RF107RF77-Y0.18KWB5法蘭安裝斜齒輪減速電機
RZ107RF77-Y0.18KWB14法蘭安裝斜齒輪減速電機

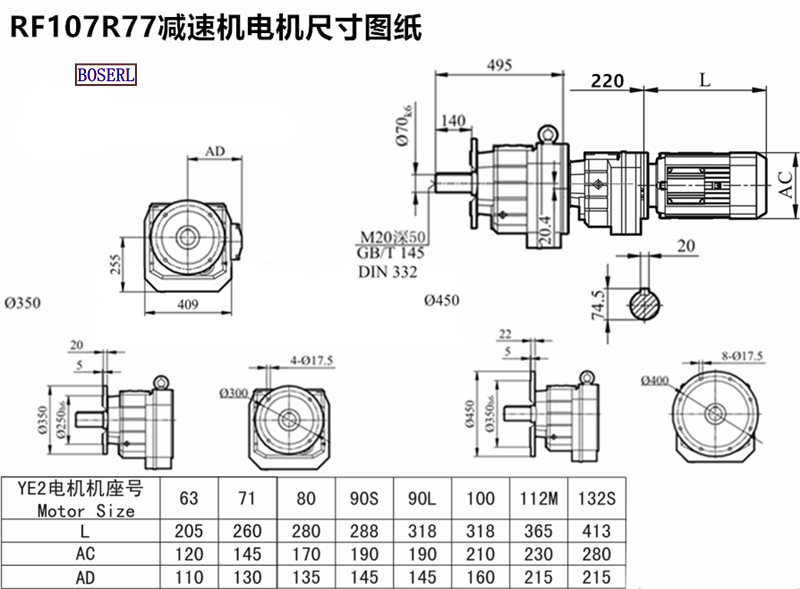

RF107RF77-Y0.18KW減速機馬達安裝尺寸圖紙
RF107RF77-Y0.18KW減速機電機生產廠家，看廠請?zhí)崆叭祛A約直線輸出減速機
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 1.1KW電機能配多大立式齒輪減速箱 RF107RF77-Y0.18KW RF107RF77-Y0.25KW RF107RF77-Y0.37KW
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| RF107RF77Y0.18KW減速機樣本 |
|
| RF107RF77Y0.18KW減速機三維圖紙 |
|
